-Mediasuite: Annotations > Measure Free Angle

Measure a free-angle on the picture, formed by two lines

1. Double click on the required object in the left part of the screen (The object will be present in the screen)

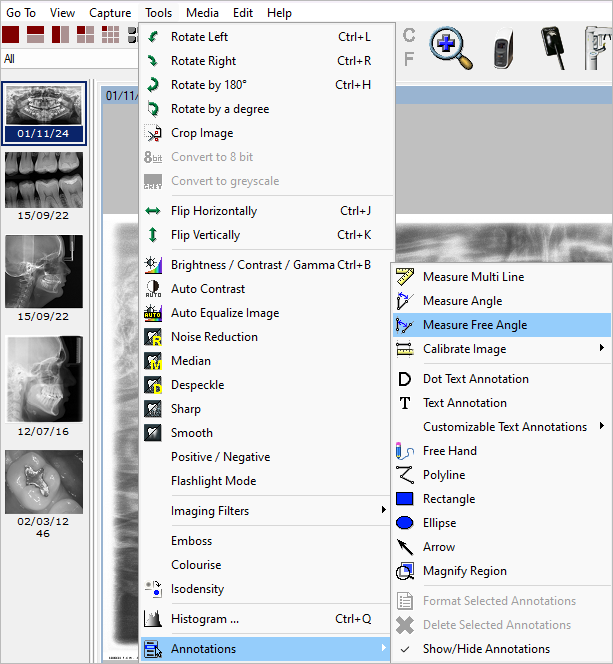

2. Go to Tools menu > Annotations > Measure Free Angle (or Right click on the large image > Measure Free Angle)



3. The cursor takes a form of an arrow with free-angle formed by two lines, symbol.

4. To measure the free-angle on the picture:

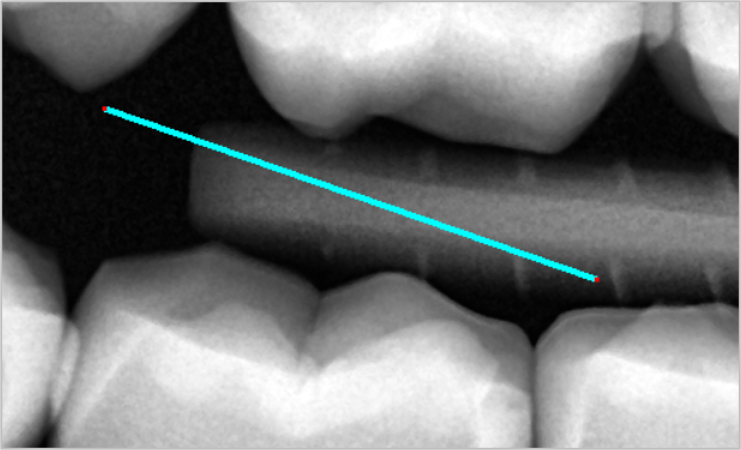

   1. Define with the cursor, the beginning point of the first line > Confirm this point by left click

   2. Move the cursor to the final point of the first line > Confirm this point (leg) by left click

   3. Define the beginning point of the second line by mouse cursor > Confirm this point (leg) by left click

   4. Move the mouse cursor to the final point of the second line > Confirm this point by double clicking on the left mouse button


5. Measurement of an angle goes anti-clockwise: The angle can be up to 360 degrees and the dimension is shown on the screen near the angle symbol

   1. To delete Free Angle, right click on Free Angle > Delete Annotation

Changes

1. Change angle position: Point the cursor at one of two lines of an angle, it takes a form of an hand with a rectangle. Click and drag across the picture

2. Change configuration and degrees: After pointing the cursor at any angle vertex, it takes a form of a hand with a cross. Point the cursor at any angle, and drag over the picture surface

3. Move measurement text: Point the cursor at the measurement text, the cursor takes a form of a hand with a letter Т. Click and drag the number over the picture. Release when the measurement is where you want it.

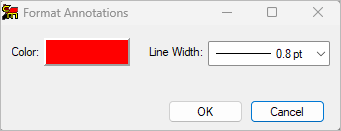

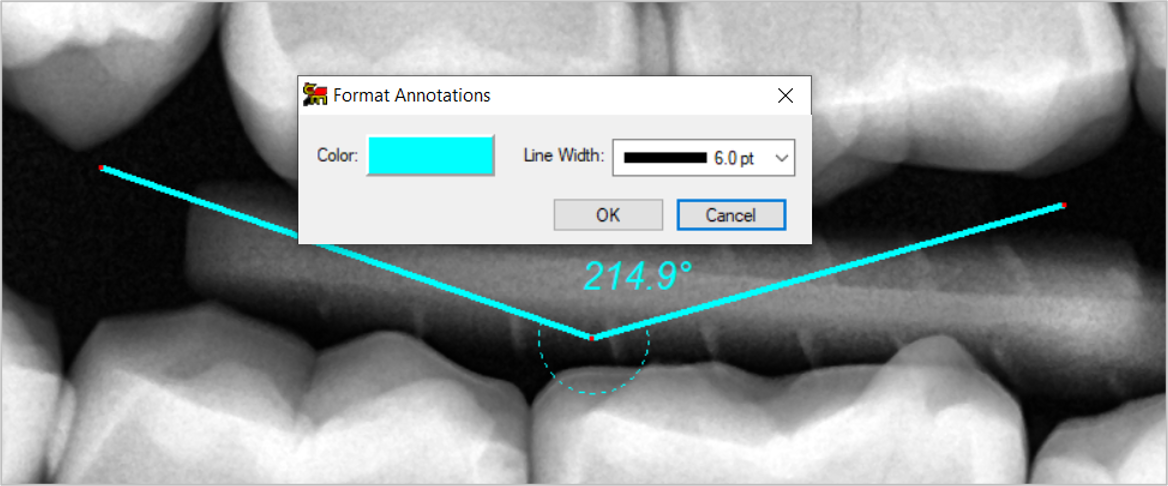

4. Change Colour and Line Width: Double click on the Free Angle. In the 'Format Annotation' window. Make changes

   1. Click OK

5. Double click on Free Angle measurments to bring up Text Attributes window to change Font face, Font size and Font style

6. 1. Click OK
