Mediasuite: Video Capture Module - Sirona Dental Unit interface support

When setting up an intra-oral camera within Mediasuite, it is possible to configure the capture to be initiated by a Sirona foot pedal.

The Mediasuite video capture interface will start-up automatically once the camera is taken from the holder and will close once it is placed back in the holder.

1. Go to Capture menu > Setup (Advanced)

   1. The password is the current date in short format. Example: the password for 21/09/2020 is 210920


   2. Open Video tab

   3. Click Add

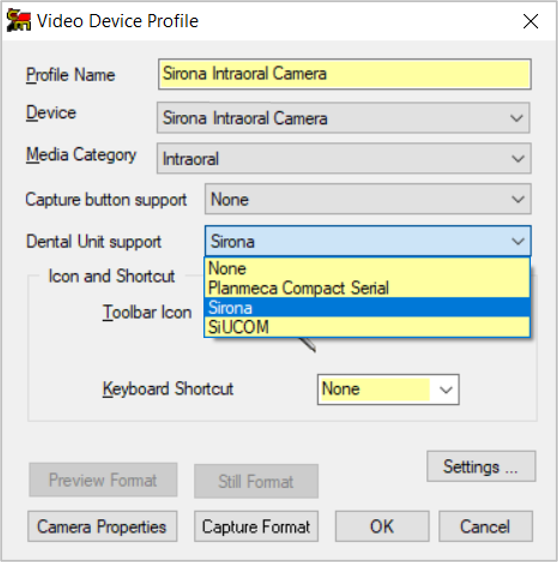

2. In the Video Device Profile window:

   1. Add Profile name, Device

   2. Select Media Category from the drop list

   3. Ensure you select Sirona from the Dental Unit Support drop list

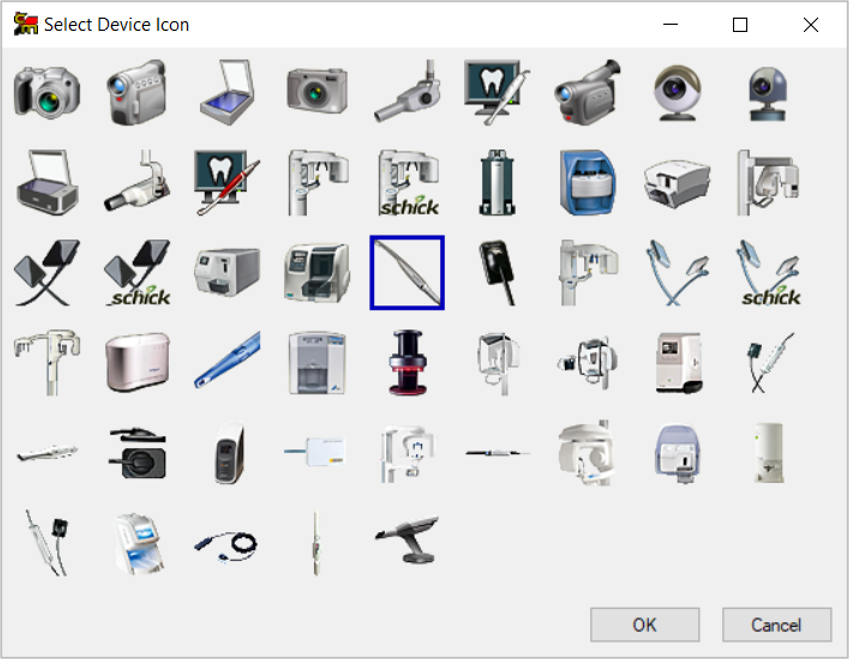

   4. Click Change Icon to select an Icon or Shortcut image. Highlight selection and click OK

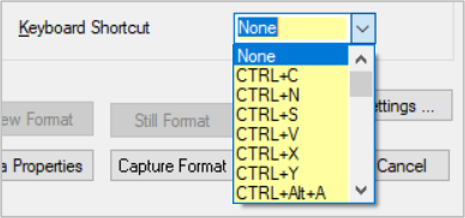

   5. Choose a Keyboard Shortcut from the drop list


   6. Click OK
