Detections can be viewed on greyscale images. It can show what caries are present and various other detections. Any image with Second Opinion detections will have Green status indicator.
-
Select image(s) on left column
-
Click arrow on the Bulk Action AI icon > View Detections
-
Or right click image > SecondOpinion > View Detections
-
-

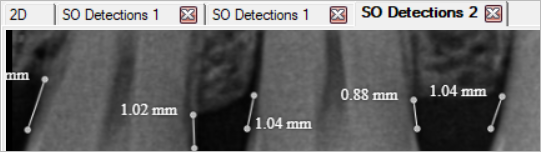

Detections will be available on tabs in viewer window
-
A toolbar will appear on the right-hand side

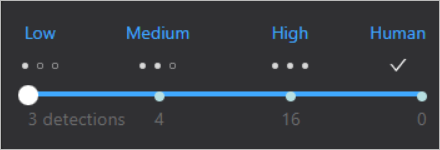

Confidence Slider
Filter displayed detections based on confidence levels.
-
Click desired confidence levels to be displayed
-
Numbers indicate how many detections are found under each confidence level
-
Human: Only human verified detections
-
High: High confidence and human verified detections
-
Medium: High, medium and human verified detections
-
Low: All confidence levels including human verified detections
AI Viewer Panel
Quick View Control
-
Hold the spacebar on keyboard to temporarily hide detections
-
Release the spacebar on keyboard to show detections again

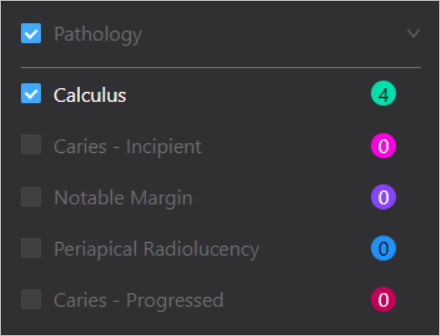

Pathology Controls
-
Untick Pathology to hide all pathology from view
-
Untick a pathology type to hide from view e.g. Calculus
-
Coloured circles indicate pathology type
-
Numbers indicate count per pathology

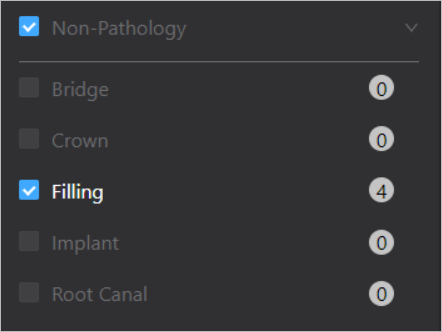

Non-Pathology Controls
-
Untick Non-Pathology to hide all Non-Pathology from view
-
Untick Non-Pathology type to hide from view e.g. Filling
-
Grey circles indicate the occurrence count
Detection System

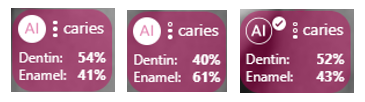

Detection Confidence Indicators
Confidence levels are shown by dot patterns
- Three filled dots: High confidence in detection accuracy
- Two filled dots (one unfilled): Moderate confidence in detection accuracy
- One filled dot (two unfilled): Low confidence in detection accuracy
