MediaSuite: Setup MediaScan

Once the device has been attached and configured to either the network or to via
the USB cable, it can be integrate in to Mediasuite.

For a network attached device this will need to be done on every PC that will initiate
a capture.

For a USB attached device it will only need to done on the PC that the device is
attached to the unit.

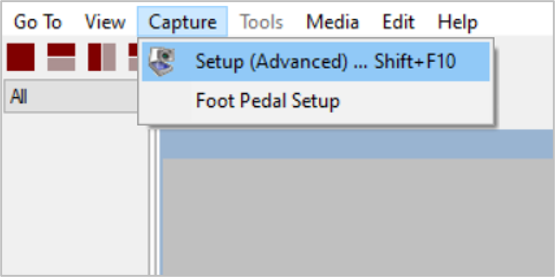

1. Go to Capture menu > Setup (Advanced)


2. Enter the password as ddmmyy which is the current date e.g. 20th June 2024 would be 200624

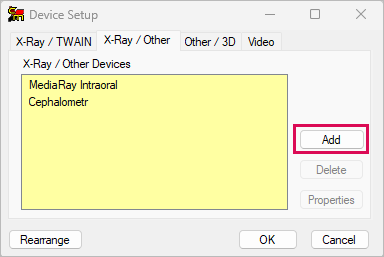

3. Select X-Ray/Other sub-tab > Click Add

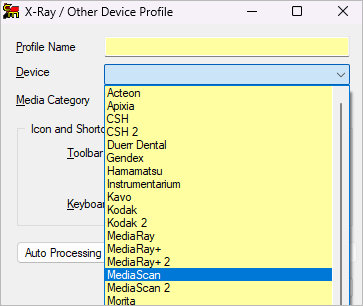

4. Select MediaScan in the Device drop down list

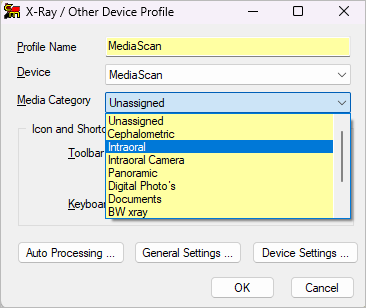

5. Select Intraoral in the Media Category drop down list

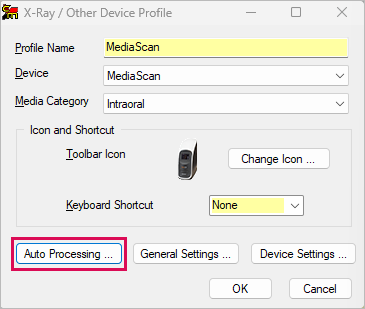

6. Click Change Icon > select the icon that resembles the Mediascan

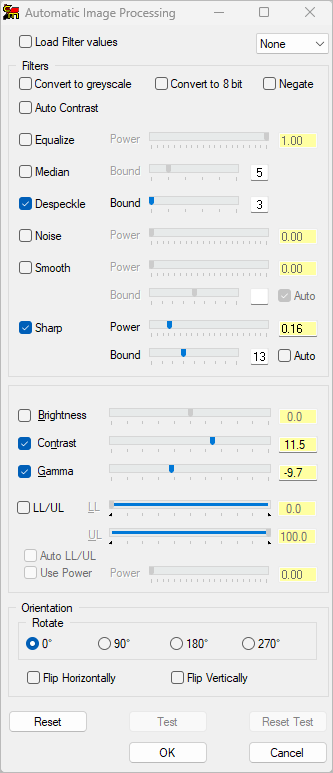

7. Click Auto Processing and set up the following:

   Despeckle = 3
   Sharp:
     Power = 0.16
     Bound = 13
   Contrast = 11.5
   Gamma = -9.7

8. Click OK three times

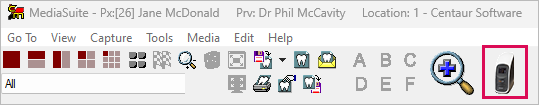

The device will be added to Mediasuite and can be used to scan images.
